Y Studios worked on a family of products for Proceq: the Pundit Touchscreen, the Pundit Pulse Echo Transducer and the Profometer PM-6.
Our design solutions are elegant yet robust to satisfy ergonomic requirements and withstand rugged environments. With an exemplary build quality that befits a Swiss brand, the final design delivers the technology in a system that exceeds ergonomic requirements and fulfills worldwide regulatory requirements.
The Pundit Touchscreen is the heart and brain of the system unit, allowing real time control over the measurement procedure directly on site. The high-resolution color display allows best possible measuring and analysis of the statistical data on-site in harsh environments for an entire working day.

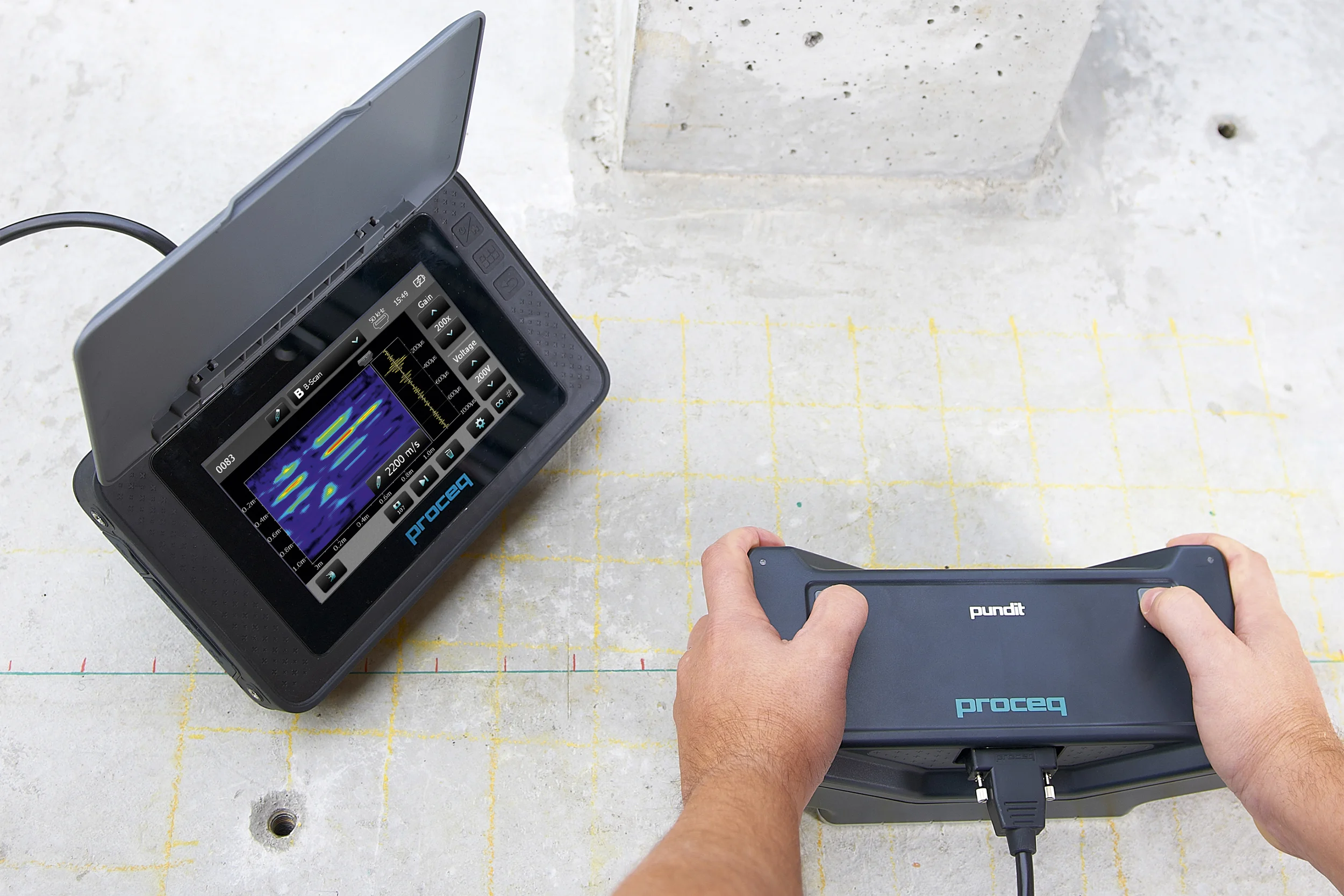

The Pundit Pulse Echo Transducer is used to create images of the internal structure of concrete, wood or rock elements with non-destructive ultrasonic testing. It uses state-of-the-art pulse echo technology to determine the slab thickness, for health monitoring of buildings and bridges and to localize subsurface deformities such as voids or pipes, especially access is restricted to a single side.
The Profometer PM-6 is an advanced cover meter for the precise and non-destructive measurement of concrete cover and underlying rebar diameters as well as the detection of rebar locations.
